| General information |
|---|

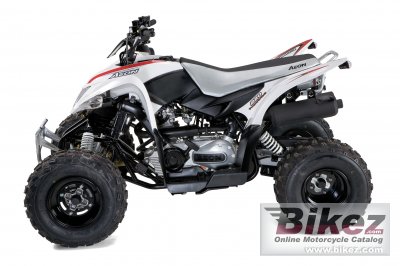

| Model: | Aeon Cobra RS 180 | | Year: | 2010 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 169.00 ccm (10.31 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 8.70 HP (6.4 kW)) @ 8200 RPM | | Torque: | 10.20 Nm (1.0 kgf-m or 7.5 ft.lbs) @ 4500 RPM | | Compression: | 9.1:1 | | Bore x stroke: | 61.0 x 57.8 mm (2.4 x 2.3 inches) | | Fuel system: | Carburettor | | Ignition: | C.D.I. | | Lubrication system: | Wet sump, Oil pump. | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Chain | | Clutch: | Centrifugal clutch | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tube | | Front suspension: | Hydraulic shock, Wishbone | | Front suspension travel: | 80 mm (3.1 inches) | | Rear suspension: | Single hydraulic shock, Unit swing arm | | Rear suspension travel: | 150 mm (5.9 inches) | | Front tyre dimensions: | 21/7-10 | | Rear tyre dimensions: | 21/10-8 | | Front brakes: | Expanding brake (drum brake) | | Rear brakes: | Single disc | | Physical measures and capacities |
|---|
| Dry weight: | 165.0 kg (363.8 pounds) | | Power/weight ratio: | 0.0527 HP/kg | | Seat height: | 790 mm (31.1 inches) If adjustable, lowest setting. | | Overall height: | 1,050 mm (41.3 inches) | | Overall length: | 1,680 mm (66.1 inches) | | Overall width: | 985 mm (38.8 inches) | | Wheelbase: | 1,050 mm (41.3 inches) | | Fuel capacity: | 8.00 litres (2.11 gallons) | | Oil capacity: | 1.20 litres (0.08 quarts) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Red/white, black/white | | Further information |
|---|
