| General moped information |
|---|

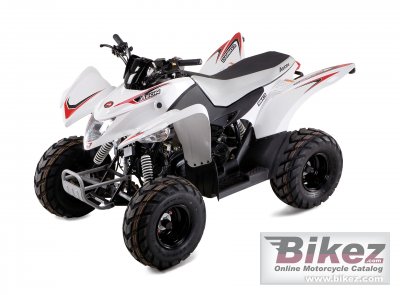

| Model: | Aeon Cobra 50 |
| Year: | 2009 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 2 |
| Power: | 3.60 HP (2.6 kW)) @ 5800 RPM |
| Torque: | 4.50 Nm (0.5 kgf-m or 3.3 ft.lbs) @ 5700 RPM |
| Compression: | 6.8:1 |
| Bore x stroke: | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system: | Carburettor. Mikuni VM16, 2-stroke |
| Ignition: | C.D.I. |
| Starter: | Electric & kick |
| Lubrication system: | Pump for automatically oil-fuel mixing |
| Cooling system: | Air |
Transmission type
final drive: | Shaft drive (cardan) |
| Clutch: | Centrifugal clutch |
| Physical measures |
|---|
| Dry weight: | 130.0 kg (286.6 pounds) |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height: | 940 mm (37.0 inches) |
| Overall length: | 1,660 mm (65.4 inches) |
| Overall width: | 1,050 mm (41.3 inches) |
| Ground clearance: | 112 mm (4.4 inches) |
| Wheelbase: | 1,050 mm (41.3 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Tube |
| Front suspension: | Dual hydraulic shock, Single A-arm |
| Front suspension travel: | 24 mm (0.9 inches) |
| Rear suspension: | Single hydraulic shock, Unit swing arm |
| Rear suspension travel: | 24 mm (0.9 inches) |
| Front tyre dimensions: | 19/7-8 |
| Rear tyre dimensions: | 18/10-8 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Single disc |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.0277 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 5.00 litres (1.32 gallons) |
