| Aeon's profilation of this bike |
| Easy and not expensive to manage, no special short maintenance is required.
If you try it, you will not regret upper displacement. |
| General information |
|---|

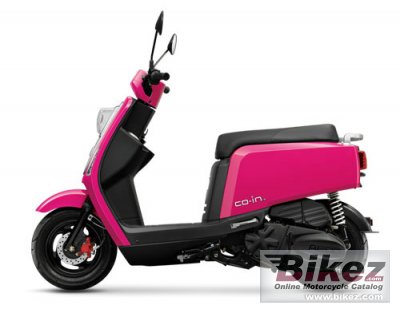

| Model: | Aeon CO-IN 125i | | Year: | 2012 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 124.90 ccm (7.62 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Torque: | 9.30 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 7500 RPM | | Compression: | 10.3:1 | | Bore x stroke: | 54.4 x 57.9 mm (2.1 x 2.3 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection. EFI | | Ignition: | C.D.I. | | Lubrication system: | Wet sump, Oil pump pressurized | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Chain | | Clutch: | Centrifugal clutch | | Driveline: | CVT | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel tube | | Front suspension: | Telescopic fork | | Front suspension travel: | 60 mm (2.4 inches) | | Rear suspension: | Single shock | | Rear suspension travel: | 55 mm (2.2 inches) | | Front tyre dimensions: | 90/90-10 | | Rear tyre dimensions: | 90/90-10 | | Front brakes: | Single disc | | Front brakes diameter: | 155 mm (6.1 inches) | | Rear brakes: | Expanding brake (drum brake) | | Rear brakes diameter: | 110 mm (4.3 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 94.0 kg (207.2 pounds) | | Seat height: | 740 mm (29.1 inches) If adjustable, lowest setting. | | Overall height: | 1,055 mm (41.5 inches) | | Overall length: | 1,700 mm (66.9 inches) | | Overall width: | 635 mm (25.0 inches) | | Ground clearance: | 100 mm (3.9 inches) | | Wheelbase: | 1,210 mm (47.6 inches) | | Fuel capacity: | 5.50 litres (1.45 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | White, azure, green | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 12 Aeon CO-IN 125i discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
